Value Acoustics L4.25

Value acoustics L4.25

Fiture:

• Sampling rate 96K 32bit
• System latency <1ms
• Frequency response: 20Hz-20kHz(+-0.5dB, 8 Ω load, @1Wtofull power)
• THD+N <1%@1W to full power
• Max input level :20dBu
• SNR: 109dB@18dBu sensitivity
• DSP functions:
  • Noise gate, Parameter EQ,
  • Dynamic EQ, Matrix mixing, FIR
  • filter, Delay, Compressor, Limiter
  • FIR filter
  • up to 2048taps process

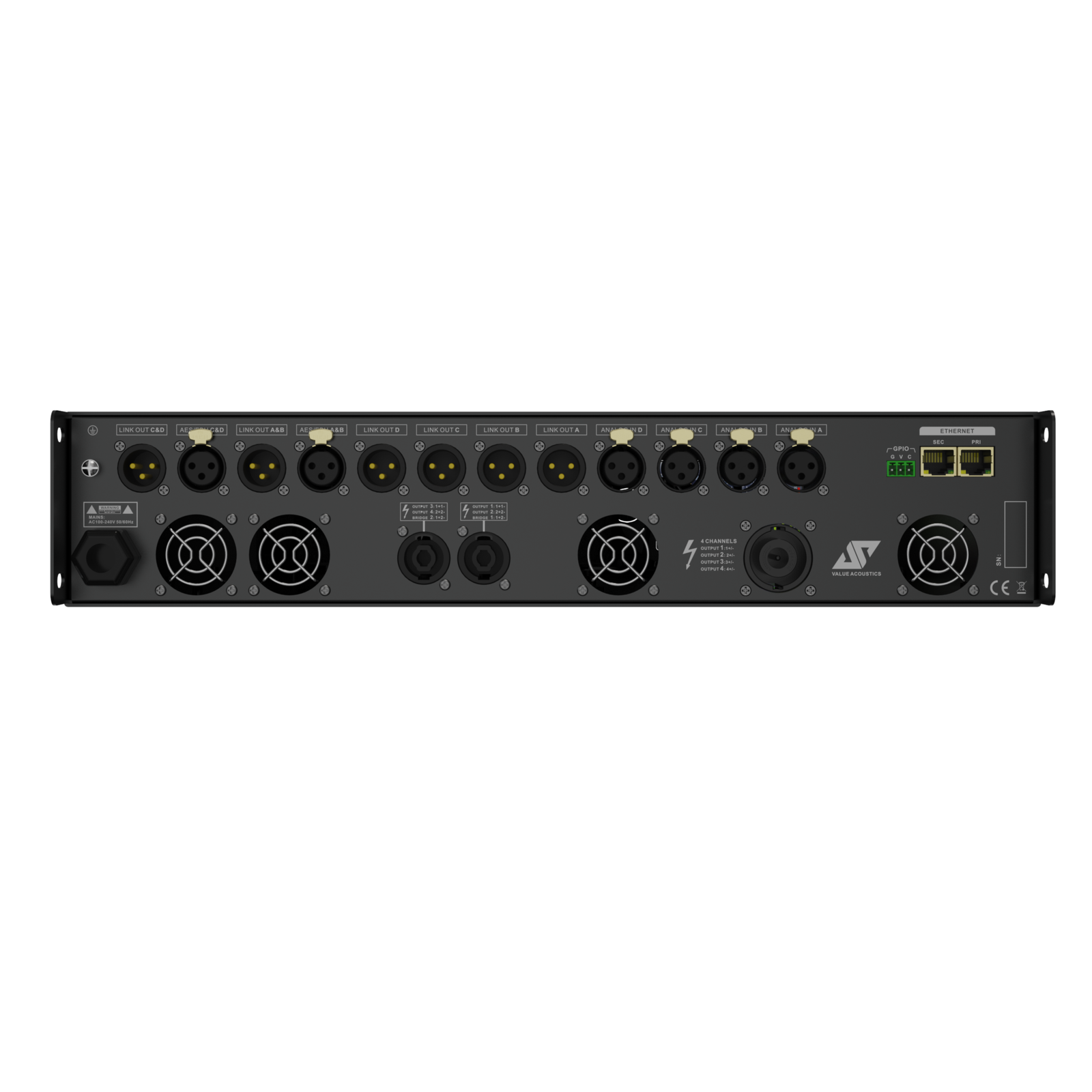

• Input and output connectors and control
• Input connectors
  • 4×XLR, analoG
  • 4×AES/EBU
• Output connectors
  • 4×XLR analog
  • 4×XLR AES/EBU, link out
• Dante network:
  • dual-port RJ45, Dante 4 RX signal in optional
• Power output  SpeakOn
• ControL TCP/IP, USB, GPIO in Phoenix
• Power output 4 Channel
  • 4×1500 watts@8Ω
  • 4×2500 watts@4Ω
  • 4×2500 watts@2Ω
  • Bridged : 2×4500 watts@4Ω, 2×4500 watts@8Ω
  • 100V output Max to 4×2500 watts
  • 70V output Max to 4×2500 watts
• Protect
  • Audio limiter, high temperature, DC, high
  • frequency, short circuit, back electromotive
  • force, peak current limiter, surge current limiter,
  • start delay, power breaker protection,
  • power supply over-voltage/under-voltage protection
• Physical
  • Power supply AC100~240V 50/60 Hz
  • Operating Environment-20 to 60℃
  • Dimension 483mm×463mm×88mm, 2U
  • Weight device 12.34kg, packaged 16,64kg
