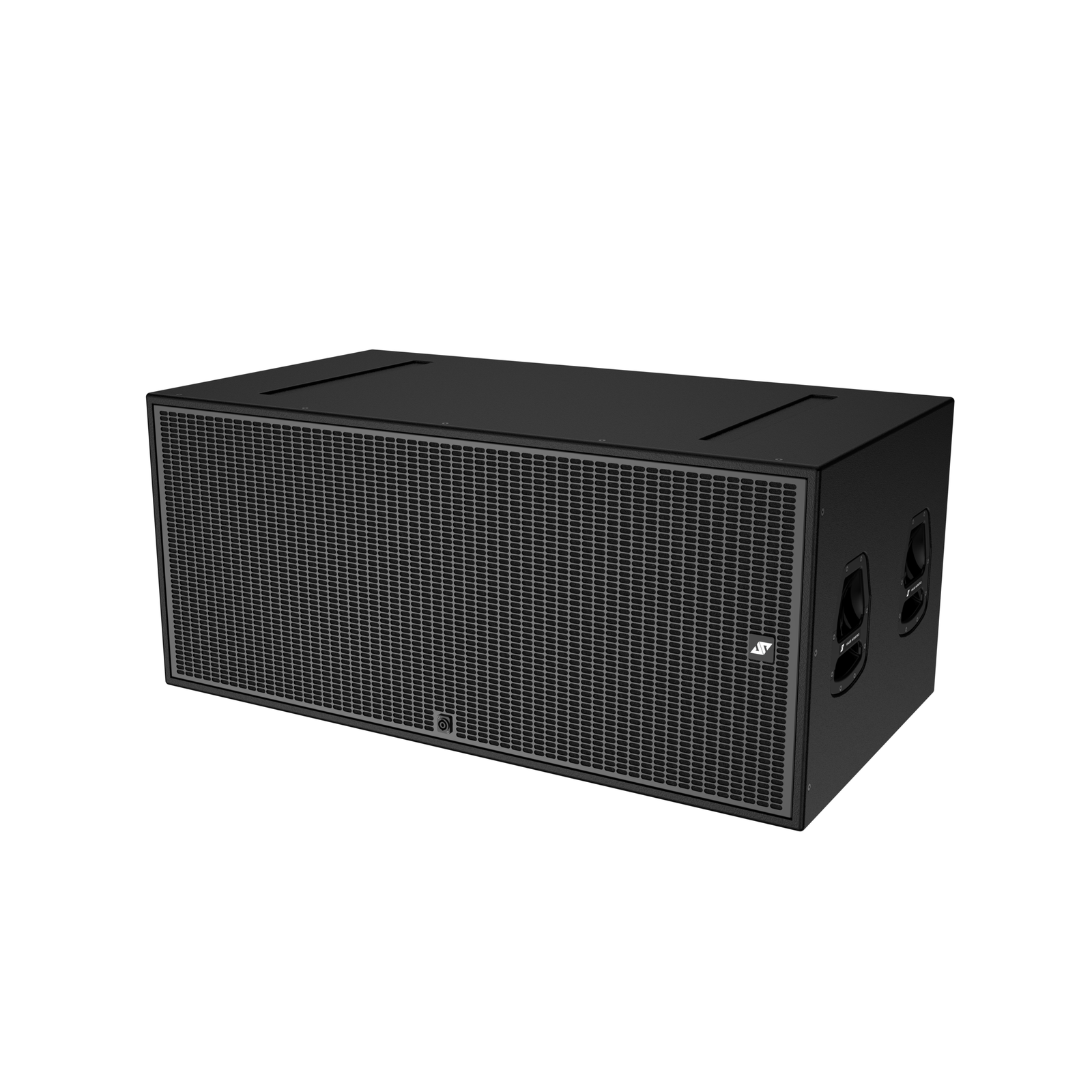

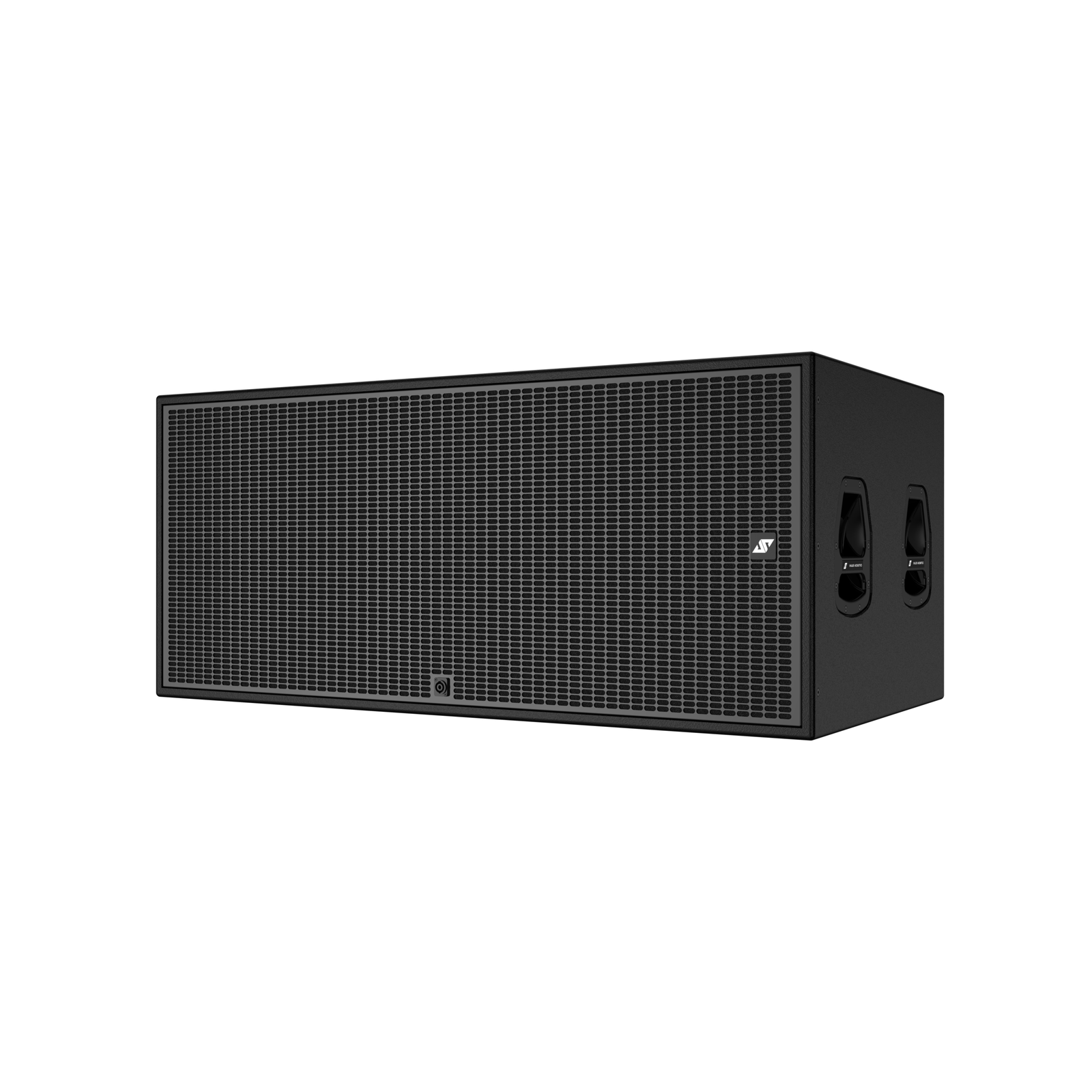

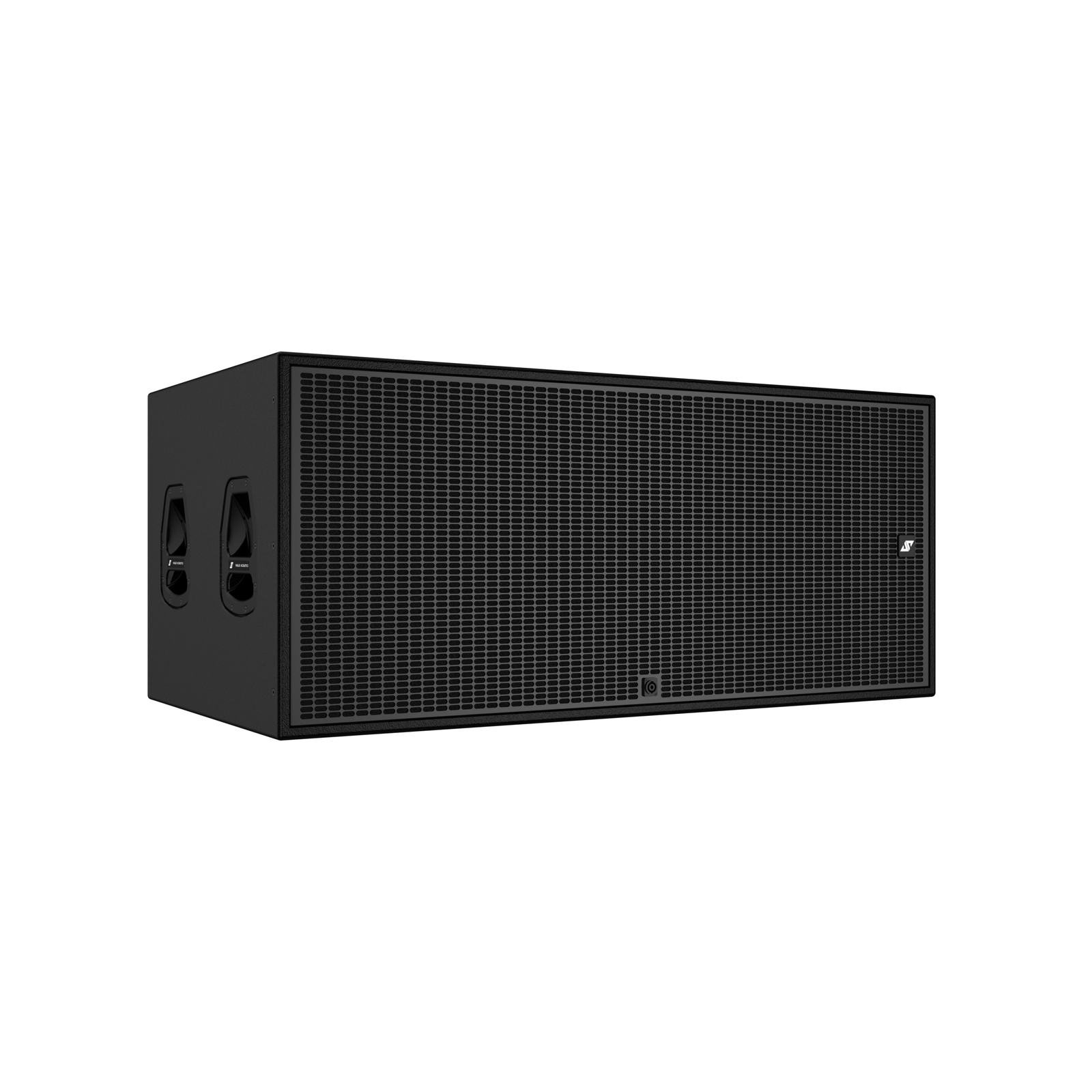

Loudspeaker Subwoofer Value Acoustics S2
Applications:
- Large-scale music festivals
- Outdoor / Indoor
- Stadiums
- Theatres and auditoriums
Technical Specifications：
- Frequency Response①: 25Hz–200Hz (±3dB), 30Hz–250Hz (-10dB)
- Sensitivity (1W/1m)②: 102dB
- Rated Impedance: 4Ω
- Rated Power : 1600W (AES) / 6400W (Peak)
- Max SPL③: 134dB (AES) / 140dB (Peak)
- Transducers LF Driver: 2 × 18″ woofer customized driver vc 4″
- Dimensions (H×W×D): 570 × 1250 × 700mm
- Net Weight: 85kg

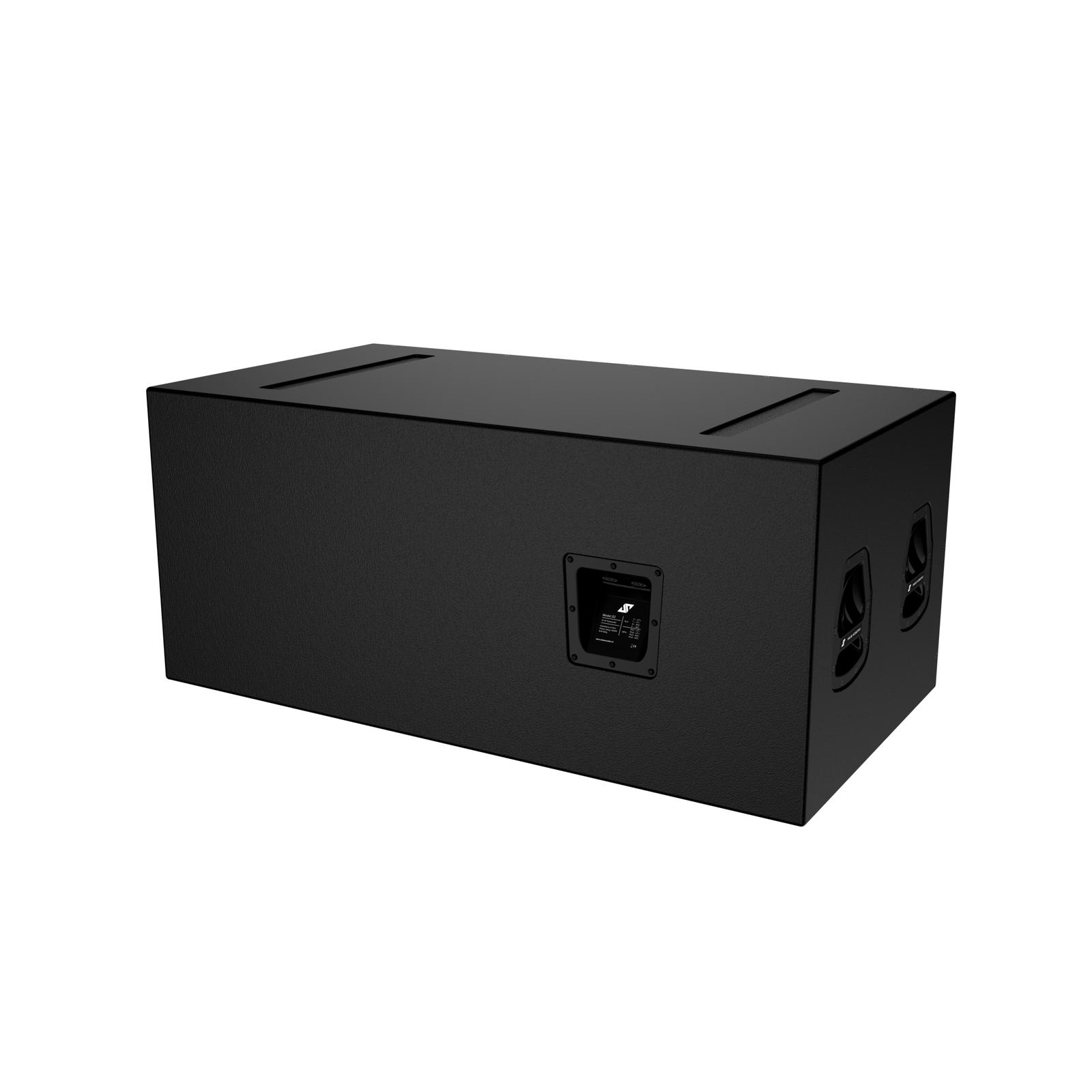

- Connectors: (rear) 2 × NL-4 waterproof 4-pin sockets rear & (front) 1x NL4 socket
- Cabinet Material: 18mm & 24mm high-density multilayer birch plywood
- Finish: Black waterproof polyurea coating
- Grille: Black epoxy perforated steel with acoustic mesh
Notes:
- ①Frequency response curve measured in anechoic chamber (full free space )
- ②Sensitivity measured in anechoic chamber (full free space) at 1m on-axis with 1W
- ③Maximum SPL obtained under preset program conditions
